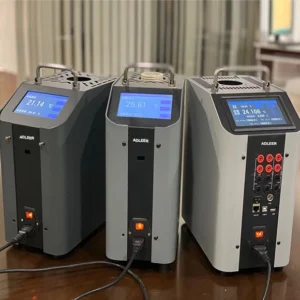

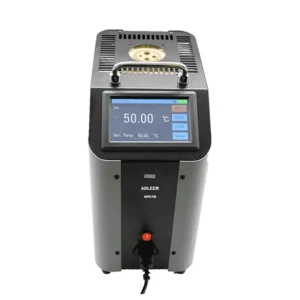

Touch-Screen Dry Block Temperature Calibrator
The portable touch screen dry block temperature calibrator ET2501 Series dry block (Dry well furnace) is easy to carry, easy to use, fast and reliable temperature efficiency, widely used in machinery, chemical industry, food, medicine and other industries. The problem of slow temperature rise and slow temperature rise is common in the existing dry test furnace in China, which leads to a long time for users to calibrate each time. The latest generation of dry well furnace of our company adopts the most advanced heating principle design in the world. It has the characteristics of fast temperature rise, fast temperature rise and fast temperature drop, which greatly improves the existing calibration efficiency.
Through reliable high precision temperature control circuit and high precision sensor, the precision is higher than that of other domestic manufacturers, and the technology has reached international standards. The first worldwide touching operation, simple and fast to use.
Main features:
- Small size, light weight, easy to carry;
- Various types of insertion tube, can meet the different size, quantity of sensor testing and
- calibration. And can be customized according to the special needs of users;
- Horizontal temperature and vertical temperature field;
- Check the depth of insertion with the industry leader;
- 5.7 inch TFTLCD touch screen, 16 bit true color RGB display, full touch operation, intuitive use;
- Fast cooling, easy to set, good temperature stability;
- Hot and fast replacement;
- With load short circuit, load switch, sensor protection and other functions.
- Description
- specifications
|
Model |
ADTC-750-150A |
ADTC-750-150B |
ADTC-750-650 |
ADTC-750-1200 |
|
|
temperature range |
-20℃~150℃ |
-30℃~150℃ |
50℃~650℃ |
300℃~1200℃ |
|
|
heating rate |
30~100:20min 30~150:40min |
30~100:20min 30~150:40min |
30~300:7min 30-400:12min 30~650:25min |
30~1200:75min |
|
|
Display accuracy |
≤±0.1℃ |
≤±0.1℃ |
Below 400℃：≤±0.35℃ 400-650℃：≤±0.5℃ |
≤±1.2℃ |
|
|
Insertion depth |
160mm |
150mm |
135mm |
||
|
Average heat block diameter |
36mm |
32mm |
32mm |
39mm |
|
|
Temperature field stability |
≤±0.02℃ |
≤±0.02℃ |
≤±0.05℃ |
≤±0.2℃ |
|
|
Horizontal temperature field |
≤±0.05℃ |
≤±0.05℃ |
≤±0.05℃ |
≤±0.25℃ |
|
|
Vertical temperature field |
The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is 1 degree |
||||
|
Temperature unit |
℃ or ℉ |
||||
|
Temp Accuracy |
0.10% |
||||
|
Display resolution |
0.01℃ |
||||
|
maximum power |
Negative temperature type: 3000W, medium temperature type: 1200W, high temperature type: 3000W |
||||
|
weight(Net weight) |
Negative temperature type: 13kg, medium temperature type: 11kg, high temperature type: 11kg |
||||
|
weight (Containing packaging) |
Negative temperature type: 23kg, medium temperature type: 18kg, high temperature type:20kg Packaging includes aluminium box and transport wooden box |
||||
|
Outline size |
Negative temperature type and high temperature type: 310*190*340mm, medium temperature type: 250*150*310mm |
||||
|
Use environment |
Ambient temperature 0-50℃, relative humidity less than 95% (no condensation) |
||||
|
Power supply |
220VAC ± 10%, 45 ~ 60Hz |
||||
|
Optional function |
Verification Data Recording and Exporting, up to 250 sensors, 2500 records,USB Device Communication Interface |
||||
