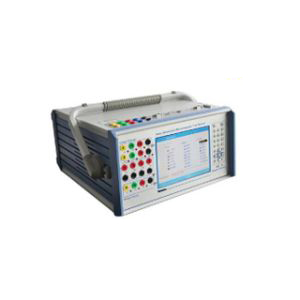

ADRP-1200T Relay Protection Tester

Latest News »
ADTC-950 INTELLIGENT DRY BLOCK TEMPERATURE CALIBRATOR ADFC-1000 plus High-Precision Multifunctional Process Calibrator ADPC-800 Series process calibrator ADTC-750 Series Temperature Calibrator

General information about ADRP-1200T Relay Protection Tester
Relay Protection microcomputer test device play a key role in operating electricity power systems reliably and safely.It is the testing device used in professional field of microcomputer protection,relay protection,excitation measurement,fault recorder.
Features:
Embedded host machine, equipped with big programmed CPLD(Complex Programmable Logic Device);
12channels D/A output simultaneously in a single machine;
High precise linear power amplifier,6 voltage outputs and 6 current outputs.
8inch LCD screen display.Provide with keyboard/mouse connecting port,also 2USB port,2 RS232 port,to communicate with PC and other communication devices;
Easy to carry,suitable for flexible testing and wild working;
Intelligent self-protection;
8channels switching value input and 4channels switching value output.Input contact is idle contact and 0-250V potential contact for selectable,intelligent identification;
Plentiful Binary and powerful software function;
Two groups of DC power supply, 110VDC/1.0A&220VDC/0.6A,no need to set and adjust by software(Optional).

  • PDF
  • specifications
There are no photos
false

Technical specification of the device:
Rated output:
Frequency error <±0.01Hz
Phase error <±0. 2°
Waveform distortion <±0.3% (fundamental wave)
Time error <40µs
Output frequency 0~1050Hz
Power voltage:Allowable range AC220V±10%, 50Hz±10%
Ambient temperature:Use range 0~45℃/Storage range -25~70℃
Time measurement:Test range  0.1ms~999999.999s
Cabinet dimension:360mm(L)×195mm(W) ×375mm(H)
Cabinet weight:Host machine   16.6kg
