High Precision Multifunction Process Calibrator

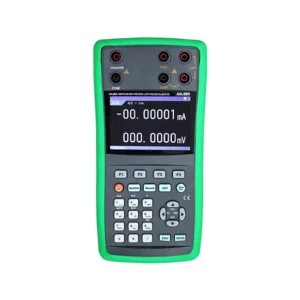

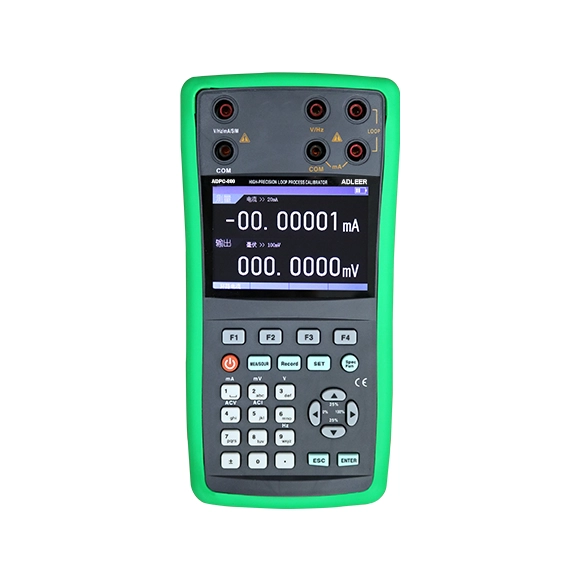

ADPC-800 high-precision multi-function process calibrator is a high-precision, hand-held process signal measurement/output instrument, which can simultaneously measure and output voltage, current, resistance, thermocouple, thermal resistance, frequency, pulse, switch value, etc. Industrial process signal; built-in HART function, can completely replace the HART Communicator.
The product can replace the measurement and calibration instruments such as current signal source, voltage signal source, resistance box, electronicADPC-800 potentiometer, frequency meter, HART hand communicator, etc. It is mainly used in industrial field signal calibration and fault diagnosis; it is also suitable for signal measurement and calibration in chemical industry, military industry and various research institutes and laboratories. This product is a powerful, standard-grade industrial process detection instrument for field and laboratory use.
Features
●Measurement/output: voltage, current, resistance, frequency, pulse, switch value, among which current output supports active and passive
●Simulate thermal resistance and thermocouple in the form of temperature
●Can simulate two-wire transmitter
●Resistance measurement can be selected in two, three and four-wire ways
●Accuracy is 0.01%
●Two mutually isolated channels, support synchronous measurement and output
●Can provide manual step, automatic step, automatic step and manual step function
●Using 3.5-inch TFT LCD screen with a resolution of 480*320
●The measurement and output data can be displayed at the same time, and the measurement or output data can also be displayed separately
●5000mAh lithium battery power supply
●With automatic power off function, time can be set, suitable for on-site use
●Provide DC24V loop power supply for on-site debugging
●The thermocouple measurement and output provide built-in, external and manual cold junction temperature compensation methods, of which the external reference terminal adopts A-grade Pt100 platinum resistance
●Thermocouple Type：R,S,K,E,J,T,N,B,L,U,XK,WRE325,WRE526
HART function (only ADPC-826B and ADPC-825B support this function): It can completely replace the HART hand-held communicator, set or calibrate the range of the smart transmitter, and force the output current of the smart transmitter to be at a fixed value (such as 20mA, 12mA) , 4mA), set the linear or square root function, can perform HART reset on the pressure sensor of the transmitter, etc.;
- Description
- Picture
- specifications
Technical indicators:
|
Model |
ADPC-826A |
ADPC-826B |
ADPC-825A |
ADPC-825B |
ADPC-824 |
notes |
|||||||
| Voltage output |
range |
100mV |
Resolution |
0.1µV |
Maximum load current<=2.5mA | ||||||||
|
precision |
0.008%RD+0.003%FS |
||||||||||||
|
1V |
Resolution |
1µV |
|||||||||||
|
precision |
0.008%RD+0.001%FS |
||||||||||||
|
10V |
Resolution |
10µV |
|||||||||||
|
precision |
0.008%RD+0.001%FS |
||||||||||||
|
Current output (active and passive) |
30mA |
Resolution |
0.1µA |
Active output maximum load voltage20V |
|||||||||
|
precision |
0.008%RD+0.003%FS |
||||||||||||
| Frequency output |
range |
100Hz |
Resolution |
0.001Hz |
Maximum load current≤2.5mA | ||||||||
|
precision |
0.01%FS |
||||||||||||
|
1kHz |
Resolution |
0.01Hz |
|||||||||||
|
precision |
0.01%FS |
||||||||||||
|
10kHz |
Resolution |
10Hz |
|||||||||||
|
precision |
0.01%FS |
||||||||||||
| Resistive output |
range |
50Ω |
Resolution |
0.1mΩ |
Excitation current0.4-4mA | ||||||||
|
precision |
0.008%RD+30 mΩ |
||||||||||||
|
500Ω |
Resolution |
1mΩ |
Excitation current0.1-2mA |
||||||||||
|
precision |
0.008%RD+30 mΩ |
||||||||||||
|
5000Ω |
Resolution |
10mΩ |
Excitation current0.04-0.4mA |
||||||||||
|
precision |
0.008%RD+100 mΩ |
||||||||||||
| Pulse output |
range |
10Hz(1~100000) |
1cyc |
±2dig |
Maximum load current≤2.5mA | ||||||||
|
1kHz(1~100000) |
|||||||||||||
|
100kHz(1~100000) |
|||||||||||||
| Switch output |
range |
100Hz(1Hz~110Hz) |
Resolution |
0.01Hz |
|||||||||
|
precision |
±2dig |
||||||||||||
|
1kHz(0.1kHz~1.1kHz) |
Resolution |
1Hz |
|||||||||||
|
precision |
±2dig |
||||||||||||
|
10kHz(1kHz~11kHz) |
Resolution |
0.1kHz |
|||||||||||
|
precision |
±2dig |
||||||||||||
| 100kHz(10kHz~110kHz) |
Resolution |
1kHz |
|||||||||||
|
precision |
±2dig |
||||||||||||
|
24output |
24V |
±10%FS |
loop output | ||||||||||
|
model |
ADPC-826A |
ADPC-826B |
ADPC-825A |
ADPC-825B |
ADPC-824 |
note |
|||||||
|
RTD output |
See the thermal resistance table for details |
See the thermal resistance table for details |
|||||||||||
|
Thermocouple output |
See thermocouple table for details |
See thermocouple table for details |
|||||||||||
| Voltage measurement |
range |
200mV |
Resolution |
0.1µV |
|||||||||
|
precision |
0.008%RD+0.003%FS |
||||||||||||
|
2V |
Resolution |
1µV |
|||||||||||
|
precision |
0.008%RD+0.002%FS |
||||||||||||
|
20V |
Resolution |
10µV |
|||||||||||
|
precision |
0.008%RD+0.002%FS |
||||||||||||
|
200V |
Resolution |
0.1mV |
|||||||||||
|
precision |
0.008%RD+0.002%FS |
||||||||||||
| Current measurement | range |
20mA |
Resolution |
0.1µA |
|||||||||
|
precision |
0.008%RD+0.003%FS |
||||||||||||
|
200mA |
Resolution |
1µA |
|||||||||||
|
precision |
0.008%RD+0.003%FS |
||||||||||||
| Frequency measurement |
range |
100Hz |
Resolution |
0.001Hz |
Maximum load current≤2.5mA | ||||||||
|
precision |
0.01%FS |
||||||||||||
|
1kHz |
Resolution |
0.01Hz |
|||||||||||
|
precision |
0.01%FS |
||||||||||||
|
10kHz |
Resolution |
10Hz |
|||||||||||
|
precision |
0.01%FS |
||||||||||||
| Resistance measurement (four-wire) |
range |
50Ω |
Resolution |
0.1mΩ |
Excitation current1mA | ||||||||
|
precision |
0.008%RD+30 mΩ |
||||||||||||
|
500Ω |
Resolution |
1mΩ |
|||||||||||
|
precision |
0.008%RD+30 mΩ |
||||||||||||
|
5000Ω |
Resolution |
10mΩ |
Excitation current0.1mA |
||||||||||
|
precision |
0.008%RD+100mΩ |
||||||||||||
| Resistance measurement (two or three wires) |
range |
50Ω |
Resolution |
0.1mΩ |
0.1mΩ |
||||||||
|
precision |
0.008%RD+30 mΩ(3 line)；0.008%RD+80 mΩ(2 line) |
0.008%RD+30 mΩ(3 line)；0.008%RD+80 mΩ(2 line) |
|||||||||||
|
500Ω |
Resolution |
1mΩ |
1mΩ |
||||||||||
|
precision |
0.008%RD+50 mΩ(3线)；0.008%RD+80 mΩ(2 line) |
0.008%RD+50 mΩ(3 line)；0.008%RD+80 mΩ(2 line) |
|||||||||||
|
5000Ω |
Resolution |
10mΩ |
10mΩ |
||||||||||
|
precision |
0.008%RD+200mΩ |
0.008%RD+200mΩ |
|||||||||||
|
Model |
ADPC-826A |
ADPC-826B |
ADPC-825A |
ADPC-825B |
ADPC-824 |
note |
|||||||
|
Switch measurement |
CLOSE/OPEN |
Excitation current1mA | |||||||||||
|
Thermal resistance measurement |
See the thermal resistance table for details |
See the thermal resistance table for details |
|||||||||||
|
Thermocouple Measurement |
See thermocouple table for details |
See thermocouple table for details |
|||||||||||
|
HART |
have |
have |
|||||||||||
|
Graduation number |
temperature range |
Resolution |
Accuracy |
note |
|
K |
-200-0℃ 0-1372℃ |
0.1℃ |
0.4℃ 0.3℃ |
not include cold junction compensation accuracy |
|
R |
-50-0℃ 0-1768℃ |
0.1℃ |
0.9℃ 0.7℃ |
|
|
S |
-50-0℃ 0-1768℃ |
0.1℃ |
0.9℃ 0.6℃ |
|
|
E |
-50-0℃ 0-1000℃ |
0.1℃ |
0.5℃ 0.4℃ |
|
|
J |
-200-0℃ 0-1200℃ |
0.1℃ |
0.3℃ 0.2℃ |
|
|
T |
-100-0℃ 0-400℃ |
0.1℃ |
0.6℃ 0.3℃ |
|
|
L |
-200-900℃ |
0.1℃ |
0.2℃ |
|
|
N |
-200-0℃ 0-1300℃ |
0.1℃ |
0.7℃ 0.5℃ |
|
|
B |
600-1820℃ |
0.1℃ |
0.7℃ |
|
|
U |
-200-0℃ 0-400℃ |
0.1℃ |
0.6℃ 0.4℃ |
|
|
XK |
-200-800℃ |
0.1℃ |
0.5℃ |
|
|
WRE325 |
0-1500℃ |
0.1℃ |
0.6℃ |
|
|
WRE526 |
0-1500℃ |
0.1℃ |
0.6℃ |
Note: The built-in cold junction compensation accuracy is 0.5℃
|
－100～0℃ |
±0.5℃ |
|
0～400℃ |
±0.2℃ |
Note: The temperature of the reference end is 0℃; the error of the internal temperature probe: ±0.2℃, following the ITS-90 international temperature scale.
